NMAX Neo S

❮ ❯

Spesifikasi Motor Yamaha NMAX Neo S

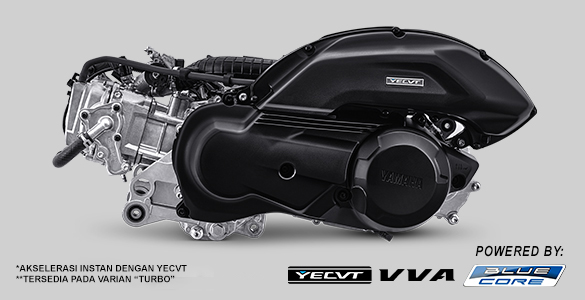

Tipe Mesin

155cc Blue Core, VVA, 4 Valve SOHC + YECVT

Tipe Mesin Neo

155cc Blue Core, VVA, 4 Valve SOHC

Jumlah / Posisi Silinder

1 Silinder

Diameter x Langkah

58 mm x 58.7 mm

Perbandingan Kompresi

11,6 : 1

Daya Maksimum

11.3 kW / 8000 rpm

Torsi Maksimum

14.2 Nm / 6500 rpm

Sistem Starter

Elektrik Starter

Sistem Pelumasan

Basah

Kapasitas Oli Mesin

1 L

Sistem Bahan Bakar

Fuel Injection

Tipe Rangka

Underbone

Suspensi Depan

Teleskopik

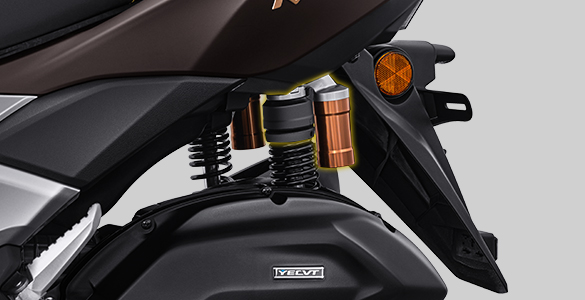

Suspensi Belakang

Unit Swing

Ban Depan

110/70 - 13 M/C 48P

Ban Belakang

130/70 - 13 M/C 63P

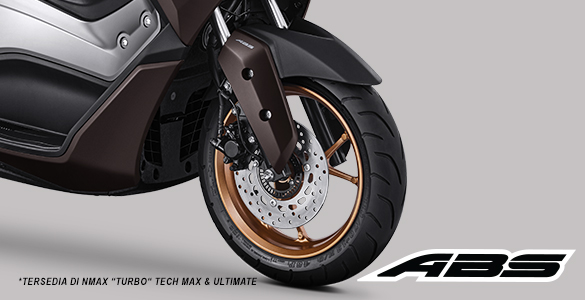

Rem Depan

Hydraulic Single Disc Brake

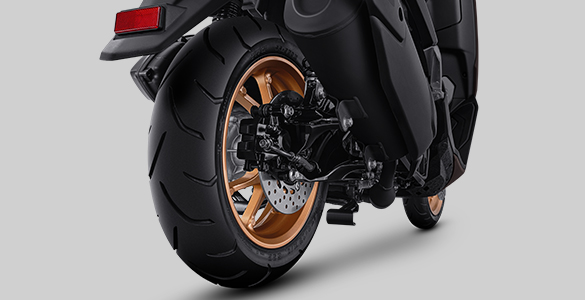

Rem Belakang

Hydraulic Single Disc Brake

P X L X T

1.935 mm x 740 mm x 1.200 mm

Jarak Sumbu Roda

1.340 mm

Jarak Terendah Ke Tanah

125 mm

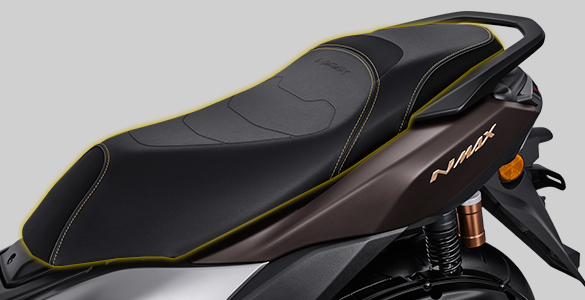

Tinggi Tempat Duduk

770 mm

Berat Isi

135 Kg

Kapasitas Tangki Besin

7.1 Liter

Sistem Pengapian

TCI

Battery

YTZ6V/YTZ7V

Tipe Busi

NGK/CPR8EA-9
